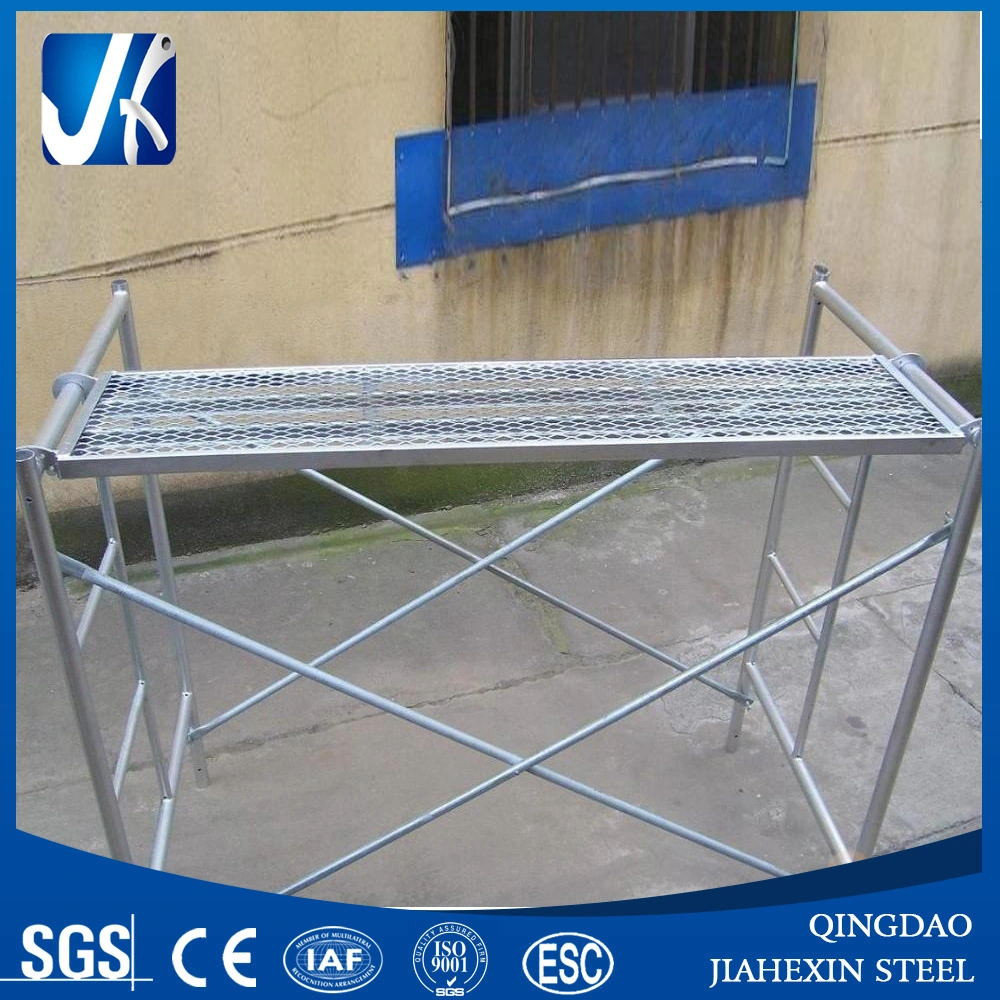

Frame Scaffolding Specifications:

1.Material: Q235,Q195,Q345

2.Diameter of tubes: Main tubes:42mm*Small tubes:25mm.

3.Thickness of tube: 1.2-3mm.

4.Size: 1219*1930mm, 1219*1700mm, 1219*1524mm, 914*1700mm, etc.

5.Type: Walk-through frame, Ladder frame.

6.Surface treatment: Dip painted, Powder coated, Electro galvanized, Hot dip galvanized.

7.MOQ: 100PCS, sample is available.

8.Experience manufacturer, 90% products are exported to international market.

9.Other sizes are also available, please inform the size and drawing.


BrandJHX-S1003Specified Value

Average ValueMinimum Value

Frame ScaffoldingUpright Tube(The compressive bearing capacity)KNHeight h=1900mm7065

Height h=1700mm7570

Height h=1500mm8075

Horizontal Tube Midspan Deflection10

Lockpin Carrying Capacity6.36.0

AccessoryHorizontal Frame\CatwalkUltimate Flexural Capacity5.44.9

Midspan Deflection10

Hook(4)Bearing Capacity2018

Plate(4)Resistance Bearing Capacity3.23.0

Cross Bar Compressive Bearing Capacity7.57.0

Joint Pin Compressive Bearing Capacity 109.5

Locking ArmTensile Bearing Capacity6.35.8

Tensile Deformation2

Wall Bar Tensile and Compressive Bearing Capacity109

Adjustable Base Compressive Bearing CapacityL≤200mm4540

200mm≤L≤250mm4238

250mm≤L≤300mm4036

L≥300mm3834
